Volkswagen Golf 7 (Mk7) Big Brake Kit Upgrade / TTSPORT Classic 5440
Seven generations in, the Golf GTI is still the benchmark hot hatch — turbocharged 2.0L four, quick-shifting DSG, room for the family, and a chassis that makes real performance feel usable every day. But the factory brakes on a Golf 7 are sized for daily commuting, not for a car that gets driven hard. This build swaps the stock front setup for a TTSPORT Classic 5440 forged four-piston big brake kit, paired with 330x28mm high-carbon heat-treated rotors and stainless steel lines.
The build sheet for this job was straightforward: front axle only, running the car's factory 17-inch wheels, with a TT5440 forged four-piston caliper, a 330x28mm high-carbon heat-treated curved rotor, and a TTSPORT stainless brake line kit.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Golf 7, factory 17-inch wheels |
| Front caliper | TTSPORT Classic 5440 forged four-piston caliper |
| Front rotor | TT 330x28mm high-carbon heat-treated curved rotor |
| Bracket | Vehicle-specific caliper mounting bracket |
| Lines | TTSPORT stainless steel brake lines |
Below is the official TTSPORT spec sheet for the 5440 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works

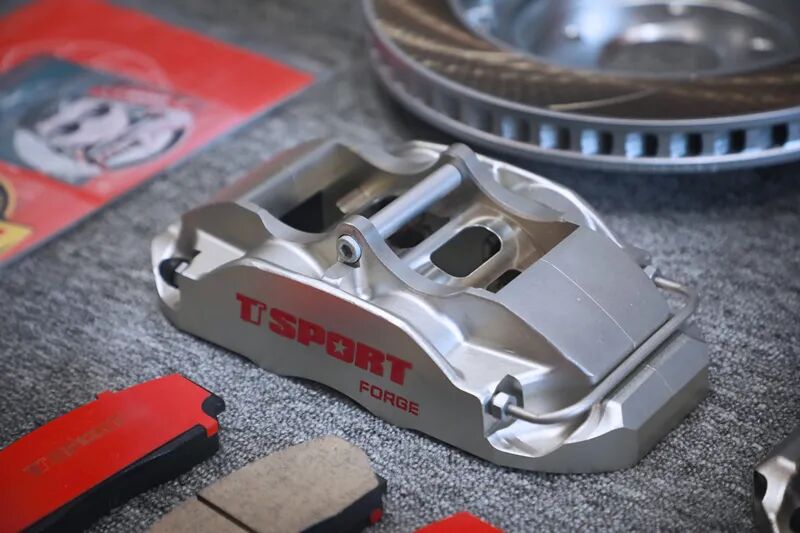

The 5440 caliper is machined from a two-piece forged aluminum body rather than cast — TTSPORT states this adds roughly 30% more rigidity than a comparable cast caliper, which means less flex under hard pedal pressure and a firmer, more predictable pedal response. Inside, opposed star-profile stainless pistons (38mm and 41mm pairs) push evenly on the pad, and the caliper is built without dust boots on those pistons, which the source notes helps dissipate heat and cut down on brake noise. Japanese-import piston seals are used to manage heat and wear at the seal interface.
- Grade 12.9 mounting hardware throughout for a caliper and bracket that stay put under repeated hard stops.
- Reinforced dual outer brake lines with a plated finish for corrosion resistance.
- The 330x28mm curved rotor carries a baked yellow coating and vented internal channels that visibly improve heat dissipation over the stock solid rotor.
- The slim caliper profile and vehicle-specific bracket were sized to clear the Golf 7's factory 17-inch wheels.
On the road, the installer noted the TTSPORT rotor and caliper respond more sensitively to pedal input than the factory solid-rotor setup — the pedal tells you more about what the front tires are doing, sooner.
Installation Gallery
The install followed a standard big-brake sequence: pull the factory caliper, clean the hub face and knuckle mounting surface so the new rotor and bracket sit flat, bolt up the TTSPORT bracket, then hang the caliper with its bleeder screw oriented up — since air is less dense than fluid, that orientation lets the system bleed clean. Caliper and bracket bolts were torqued with a torque wrench before buttoning the wheel back on.
What wheel size does the TTSPORT 5440 kit require on a Golf 7?
What's included in this Golf 7 big brake kit?
Does the TT5440 caliper change pedal feel compared to the stock brakes?
