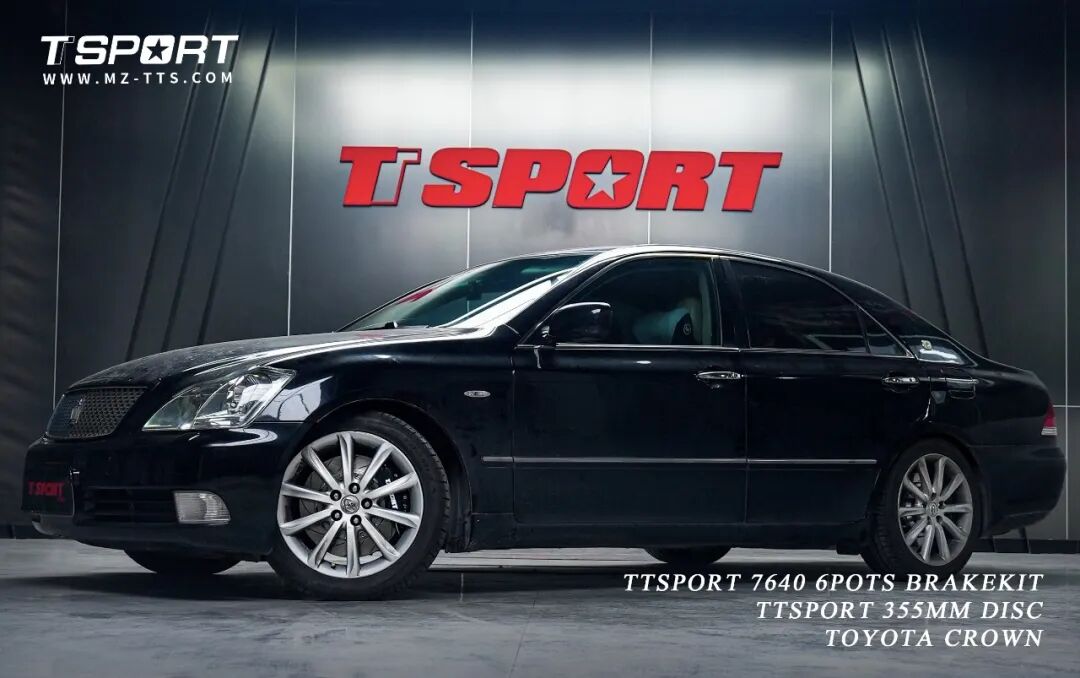

Toyota Crown Big Brake Kit Upgrade / TTSPORT Classic 7640
A Toyota Crown owner ran the same TTSPORT six-piston caliper for twelve years and more than 240,000 km, replacing nothing but the brake pads. When it finally came time to retire that caliper, he didn't shop around — he moved straight to TTSPORT's current TT7640 Classic Series kit.
Long-term brake reliability is hard to fake. This Crown's caliper went through more than a decade of daily driving, stop-and-go traffic, and highway runs without a single rebuild — only pad swaps kept it going.
12 Years, 240,000+ Kilometers on One Caliper
The owner never touched the caliper internals. By the time we caught up with him, the rotor surface had worn nearly flat, yet the braking system stayed stable the entire time. Over twelve years, the only maintenance performed was periodic pad replacement — no fluid seal failures, no sticking pistons, no loss of pedal feel.
A close look at the caliper body tells the story on its own — the forged housing held up through more than a decade of daily driving without a rebuild.
The caliper still carries an early TTSPORT logo design, and the anti-counterfeit label on the back of the housing remains legible after twelve years of outdoor use — a small detail, but one that says a lot about how the part was built rather than how it was marketed.
The Crown is more than a commuter to its owner — he calls it his "lucky car" and has held onto it far longer than most people keep a daily driver. When the original caliper finally came off, he chose to move up to TTSPORT's current-generation TT7640, betting the newer six-piston design will carry him through another twelve years.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Toyota Crown sedan (generation/model code not specified by the owner) |
| Original caliper | TTSPORT six-piston forged caliper, earlier Classic Series design, in service 12 years / 240,000+ km |
| Maintenance history | Brake pads replaced periodically; no other service performed on the caliper |
| Replacement caliper | TTSPORT TT7640, six-piston forged Classic Series caliper |
| Rotor compatibility | Designed to pair with carbon-ceramic rotors |
Below is TTSPORT's official spec sheet for the TT7640, the caliper the owner installed to replace his 12-year-old unit.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 7640 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 27 mm × 2 / 33 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 353 mm × W 162 mm × H 92 mm |
| Total Piston Area | 51.2 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.70 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–380 mm × 32 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 98 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- A two-piece forged aluminum body resists flex under repeated hard stops, which is part of why the pedal on this Crown stayed firm instead of going soft over 240,000 km.
- A six-piston layout spreads roughly 50 cm² of piston area across the pad, giving even, stable clamping force instead of a few concentrated pressure points that wear unevenly.
- Two-piece stainless, heat-insulated pistons limit how much heat transfers into the brake fluid during repeated hard braking — a big part of why this caliper never showed fade or seal failure over a decade of use.
- The TT7640 is built to pair with carbon-ceramic rotors, giving owners an upgrade path without swapping calipers again down the line.
None of that shows up on a spec sheet the way it shows up on an odometer. Twelve years and 240,000 km without a caliper rebuild is the kind of proof that's hard to argue with.
Installation Gallery
FAQ
How long did this Toyota Crown run on its original TTSPORT caliper?
What did the owner upgrade to after retiring the 12-year-old caliper?
Is the TT7640 caliper compatible with carbon-ceramic rotors?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
