Toyota Alphard/Vellfire Big Brake Kit Upgrade / TTSPORT Evolution ES6
A lot of Alphard and Vellfire owners want more braking feel and power, but they don't want to run flanges, spacers, or bigger wheels to get it. That's the exact problem TTSPORT built the Evolution ES6 kit around: a vehicle-specific, narrowed six-piston caliper that clears the factory 18-inch wheel with nothing added in between.
The stock brake on these minivans is tuned for comfort, not repeated hard stops — heavy curb weight plus a soft factory caliper adds up to a mushy pedal and fade under sustained braking. This case swaps the front axle onto TTSPORT's Evolution ES6 kit, built specifically for the Alphard/Vellfire platform.
Vehicle & Kit Specs
Here's the hardware breakdown for this front-axle install:
| Item | Specification |
|---|---|
| Vehicle | Toyota Alphard / Vellfire, factory 18-inch wheels |
| Front caliper | TTSPORT ES6 split forged six-piston caliper, narrowed to a vehicle-specific width |
| Front rotor | TTSPORT 340mm high-carbon steel rotor, heat-treated with a slotted "wheat-ear" pattern face |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fastening hardware |
The table below is the official TTSPORT spec sheet for the ES6 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | ES6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 27 mm × 2 / 32 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 294 mm × W 155 mm × H 84 mm |
| Total Piston Area | 50.2 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–380 mm × 32 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 99 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |

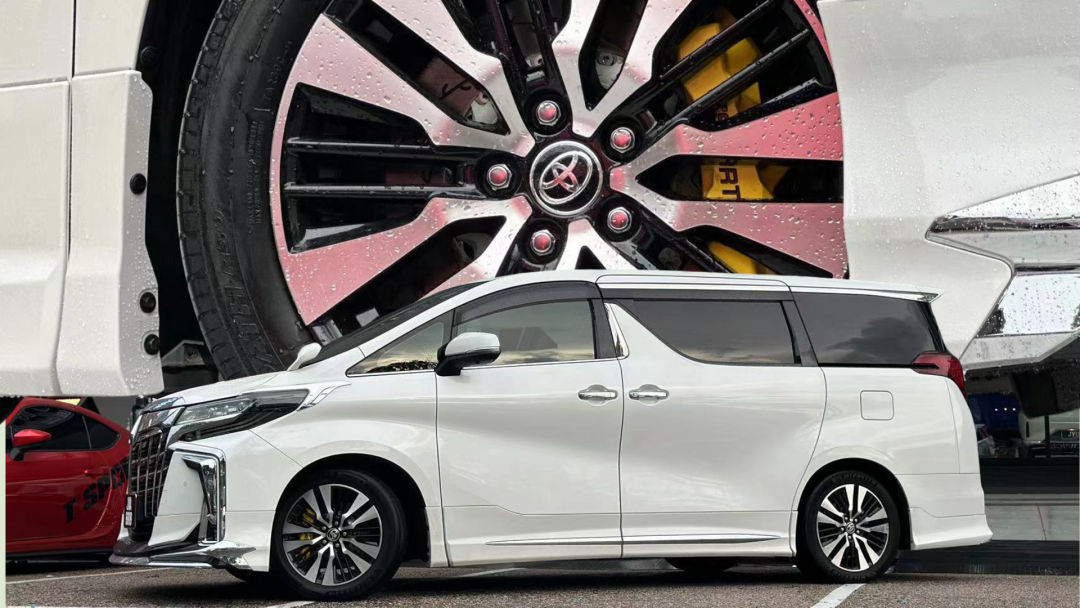

No flanges, no spacers, no wheel swap — this kit was engineered from the start to slide behind the factory 18-inch wheel on the Alphard and Vellfire.
Why It Works
TTSPORT ran mechanical simulation on the standard ES6 caliper and narrowed the body for this application, keeping the structure stiff enough for six-piston clamping force while trimming the width down to what the OEM wheel spokes allow.
- Forged, two-piece construction with a through-bolt reinforcement bar — the first time TTSPORT has used this bar on this application — adds structural strength and durability under repeated hard use.
- Two-piece heat-dissipating pistons pull heat away from the fluid faster, helping keep pedal feel consistent instead of going long and soft after repeated stops.
- A rigid fixed six-piston caliper reads driver input more directly than a flexing factory caliper, translating into a more linear, predictable pedal in hard or emergency braking.
Installation Gallery
Does the TTSPORT ES6 kit require spacers or bigger wheels on the Alphard/Vellfire?
What comes in the TTSPORT ES6 kit for the Alphard/Vellfire?
Why is this ES6 caliper narrower than a standard ES6 unit?
