Skoda Octavia Combi Big Brake Kit Upgrade / TTSPORT Classic 5440
Skoda's Octavia Combi wagon is a practical, well-rounded platform, but its factory brakes are sized for everyday commuting, not for a driver who wants sharper pedal feedback. For this build, the shop spec'd a TTSPORT Classic 5440 forged four-piston kit — a straightforward, cost-effective upgrade that slots behind the car's stock 17-inch wheels.
The goal here wasn't a track-only setup — it's an OEM+ upgrade meant to fill out the wheel and give the driver more confidence under braking, without touching wheel fitment or ride height. The TT5440 caliper and matching 330x28mm rotor were chosen specifically because they work within the Octavia's factory 17-inch wheel package.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Skoda Octavia Combi (wagon), 17-inch wheels |
| Front caliper | TTSPORT Classic 5440, forged aluminum four-piston |
| Front rotor | TTSPORT 330x28mm high-carbon heat-treated curved-vane rotor |
| Lines | TTSPORT stainless steel brake lines |
Here's the full specification sheet for the TT5440 caliper used in this install:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The TT5440 is a two-piece forged aluminum caliper. Forging aligns the metal's grain structure, which gives the body more rigidity than a cast piece of the same weight — that stiffness is what keeps pedal travel consistent under hard braking instead of flexing away pressure. The material also carries heat more effectively, which matters when a small-displacement wagon is loaded up with passengers and cargo on a long descent.
Why It Works
- Forged four-piston caliper body resists flex better than the stock single-piston caliper, so pedal input translates more directly to clamping force.
- The 330x28mm rotor adds surface area and thermal mass over the factory disc, giving the system more capacity to shed heat before fade sets in.
- The kit is sized to clear the Octavia's stock 17-inch wheels, so there's no spacer, offset, or wheel swap needed to run it.
- Stainless steel lines replace the factory rubber hoses, cutting down on the hose expansion that contributes to a soft or spongy pedal.

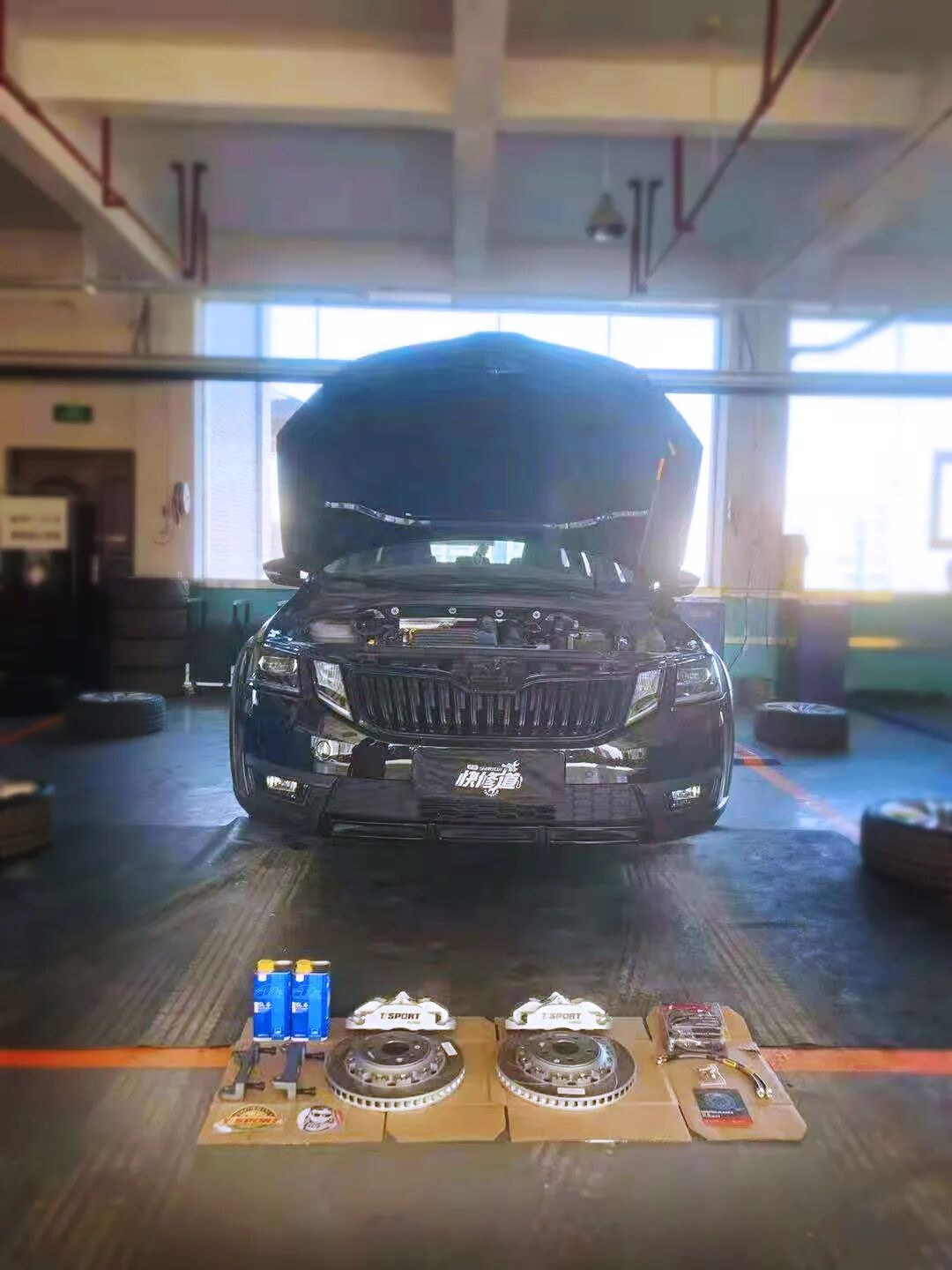

Installation Gallery
FAQ
Does the TTSPORT 5440 kit fit the Skoda Octavia Combi's stock 17-inch wheels?
What's included in this TTSPORT big brake kit for the Octavia Combi?
What is the TT5440 caliper made from?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
