Mercedes-Benz C200 Big Brake Kit Upgrade / TTSPORT Classic 5440
The Mercedes-Benz C200's low-power tune makes 135kW at 5,500rpm and 300Nm from 1,200-4,000rpm — more torque, and available lower in the rev range, than the equivalent BMW 2.0T low-power engine. That's plenty of shove for a compact sedan, and it means the factory brakes are working harder than the spec sheet suggests. On this build we swapped in a TTSPORT Classic 5440 four-piston kit to give the C200 a pedal that matches its motor.
The upgrade package for this car was straightforward: a TT5440 four-piston caliper, a 330x28mm high-carbon heat-treated rotor, and TTSPORT stainless steel brake lines, all fitted behind the car's existing 17-inch wheels.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mercedes-Benz C200, 17-inch factory wheels |
| Front caliper | TTSPORT Classic 5440 four-piston, two-piece forged aluminum |
| Front rotor | TTSPORT 330x28mm high-carbon, heat-treated |
| Lines | TTSPORT stainless steel brake lines |
The official TTSPORT spec sheet for the 5440 caliper used in this build is below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- Two-piece forged aluminum construction, built under roughly 3,000 tons of forging pressure, gives the 5440 caliper body about 30% more rigidity than a typical cast caliper — less flex under load means less pedal travel before the pads bite.
- Opposed four-piston clamping with genuine imported seals spreads clamping force evenly across the pad, improving pedal feedback and modulation over the stock single-piston setup.
- The 330x28mm rotor is baked at 600°C and then held at temperature for 12 hours, a process meant to increase the disc's strength and wear resistance, addressing the warping that can occur under repeated hard braking.
- The kit was matched to this C200's factory 17-inch wheels with no spacers required, keeping the geometry stock while adding braking hardware.
After the swap, the owner reported a firmer, more planted pedal, a noticeable jump in perceived friction, and noticeably less brake dust building up on the rotor face and wheel face.

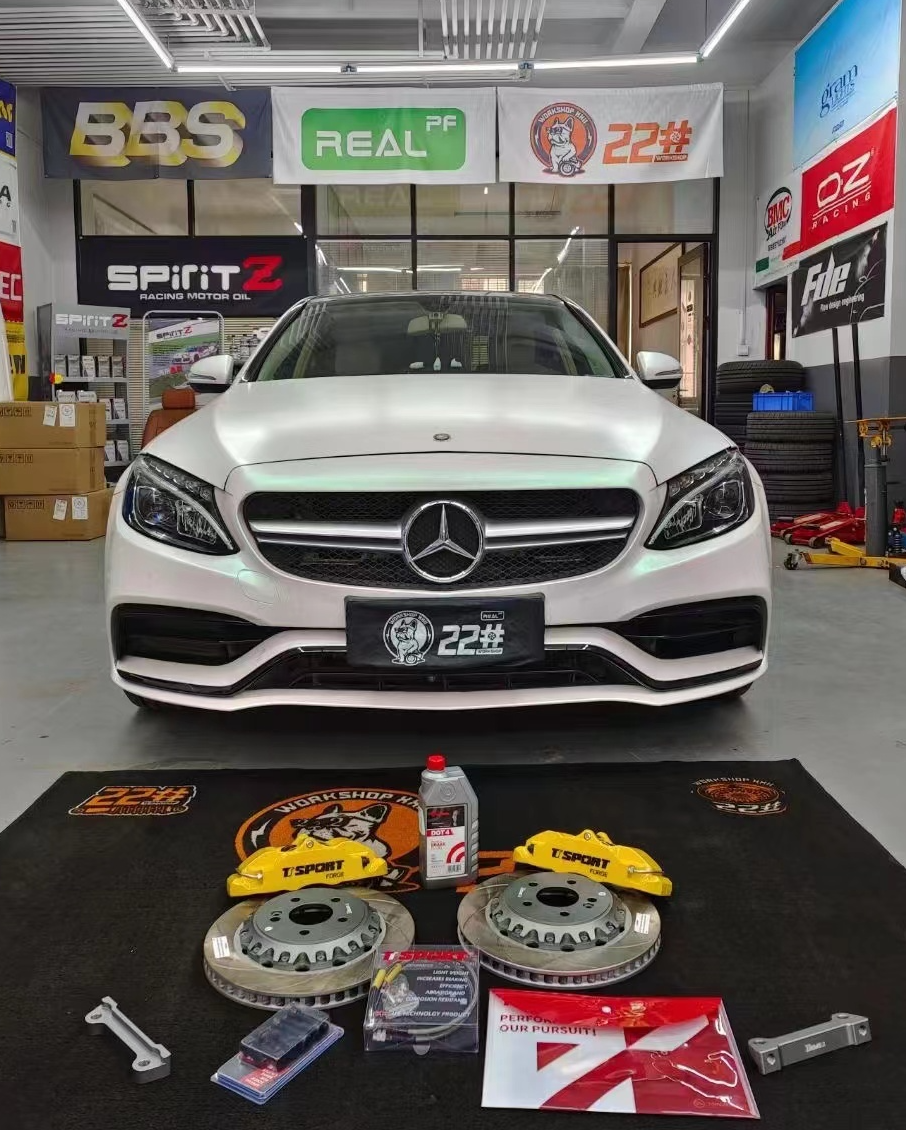

Installation Gallery
FAQ
What wheel size does the TTSPORT 5440 kit fit on the C200?
What's included in this C200's TT5440 upgrade?
Is the TT5440 caliper stiffer than the stock cast caliper?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
