Mazda Axela Big Brake Kit Upgrade / TTSPORT Classic 5430

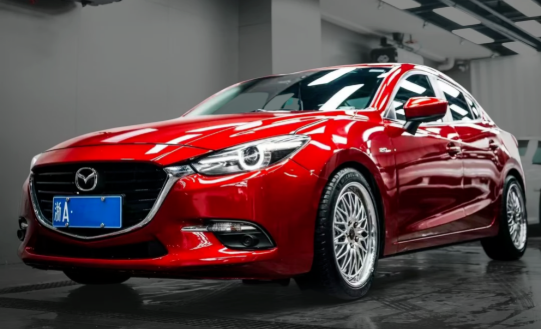

This Mazda Axela came in with a common complaint: the factory front brakes felt soft and long-travel under hard, repeated stops, with the pedal sinking further the harder the driver pushed. Rather than chase pad compounds or fluid swaps, the fix was a front-axle upgrade to the TTSPORT 5430 — a Classic Series big brake kit built around a forged two-piece aluminum 4-piston caliper.
Vehicle & Kit Specs
Here's the hardware breakdown for this build.
| Item | Specification |
|---|---|
| Vehicle | Mazda Axela (Mazda3), front axle upgrade |
| Front caliper | TTSPORT 5430, Classic Series, forged two-piece aluminum, 4-piston |
| Front rotor | Vented rotor, Ø330–355 mm × 28 mm per kit specification |
| Bracket | Vehicle-specific radial-mount caliper bracket |
| Pads / lines | Performance brake pads with stainless steel brake lines |
| Hardware | Mounting hardware and brake fluid included with the kit |
The official TTSPORT spec sheet for the 5430 caliper is below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 282 mm × W 152 mm × H 77 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.20 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–355 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 95 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
A soft, sinking pedal usually traces back to flex somewhere in the system — most often the caliper body itself. Small factory sliding calipers can flex under load, and that flex eats into pedal firmness and consistency, especially when the brakes are worked hard. The 5430's forged two-piece aluminum body is stiffer than that setup, so more of the driver's pedal input goes into clamping force instead of deforming the caliper.
- 4-piston layout with 49.1 cm² of combined piston area spreads clamping force more evenly across the pad for better modulation.
- A larger-diameter rotor (up to 355 mm vs. the smaller factory disc) adds swept area and thermal mass, helping resist fade during repeated hard stops.
- The vehicle-specific radial-mount bracket is built to package behind wheels of 17 inches or larger without spacers.
Fitment Notes
Because the 5430 is a radial-mount caliper on a purpose-built bracket, wheel fit comes down to spoke clearance rather than guesswork. TTSPORT specifies a minimum spoke clearance of 95 mm and recommends 17-inch or larger wheels for this kit — worth checking against a given wheel's back-side clearance before ordering, since spoke design varies even within the same wheel diameter.
Installation Gallery
What TTSPORT brake kit fits the Mazda Axela in this case?
Does the TTSPORT 5430 kit fit under the Axela's factory wheels?
