Mazda 3 Axela Big Brake Kit Upgrade / TTSPORT Classic 5440
The Mazda 3 Axela has always had a following in the modification scene, especially with owners chasing sharper stance and better stopping power to match its already-lively chassis. This build swaps the factory front brakes for a TTSPORT 5440 forged four-piston kit, paired with 343x28mm rotors and stainless steel lines — a straightforward OEM+ upgrade that doesn't touch wheel fitment.
China's Changan Mazda-built Axela carries over the 1.5L/2.0L plus 6AT drivetrain, and while outright output isn't its selling point, throttle response and chassis balance are strong for the class. That makes brake feel matter more than usual — a soft, long-travel stock pedal undercuts the car's handling in a way a bigger engine wouldn't fix. This particular car runs 18-inch wheels, which gave the owner plenty of room to move up to a proper four-piston setup.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mazda 3 Axela (Changan Mazda, China market), 18-inch wheels |
| Front caliper | TTSPORT 5440 forged four-piston caliper, Classic Series |
| Front rotor | 343x28mm high-carbon heat-treated curved-vane rotor |
| Bracket | Vehicle-specific radial-mount caliper bracket |
| Lines | TTSPORT stainless steel brake lines |
Below is TTSPORT's official spec sheet for the 5440 caliper used in this install.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The 5440 is built as a two-piece forged aluminum body with opposed four-piston layout — 38mm pistons up front, 41mm at the rear of the caliper — for roughly 49.1 cm² of combined piston area per side. That's a meaningful step up from a stock single- or twin-piston sliding caliper, which flexes under hard braking and lets pedal travel grow long before the car actually slows.
Why It Works
- A forged, radially mounted caliper body flexes less than a stock sliding caliper, so pedal input translates directly into clamp force instead of getting absorbed by the caliper structure.
- The 343x28mm rotor adds swept area and thermal mass over the factory disc, giving the system more capacity to absorb and shed heat before fade sets in.
- With a 17-inch minimum wheel spec and a 86mm spoke clearance requirement, the 5440 was designed to sit behind common OEM wheel sizes — no spacers needed on this 18-inch Axela.
- Stainless steel lines resist the swelling that rubber hoses experience under heat and pressure, keeping pedal feel consistent lap after lap or stop after stop.

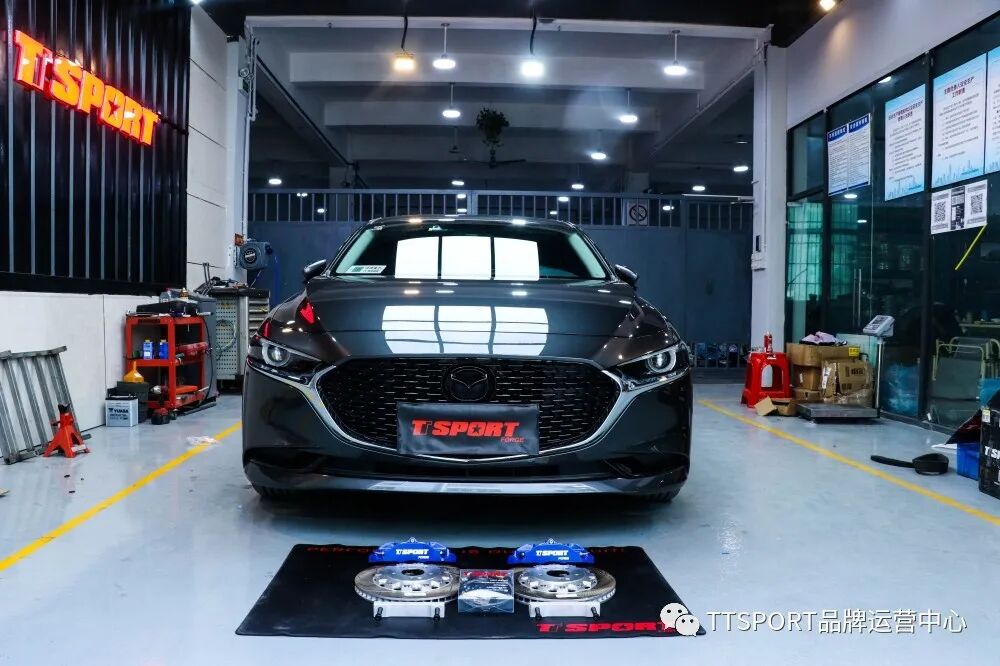

Installation Gallery
What size wheels does this TT5440 kit fit on the Mazda 3 Axela?
What's included in this brake upgrade?
Is the 5440 caliper a radial-mount design?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
