SAIC Maxus G50 Big Brake Kit Upgrade / TTSPORT Classic 7609
The SAIC Maxus G50 is a family MPV that tips the scales at over 2 tons, but its stock front dual-piston calipers and vented rotors only managed a tested stopping distance of roughly 40.73 meters - a bare pass for a vehicle this heavy. The owner opted for a TTSPORT 7609 four-piston kit to close that gap without giving up the factory 15-inch wheels.
Curb weight is the enemy of a small stock caliper and a thin rotor. More mass means more kinetic energy to shed every time the pedal goes down, and a two-piston setup with a modest rotor can only dissipate heat and clamp so hard before fade and a soft pedal show up. The fix here was a proper caliper and rotor upgrade sized to fit the G50's existing 15-inch wheel - no wheel swap, no spacers, just more braking hardware in the same footprint.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | SAIC Maxus G50 MPV, 15-inch factory wheels, curb weight over 2 tons |
| Front caliper | TTSPORT 7609 cast four-piston caliper |
| Front rotor | TTSPORT 285mm x 24.5mm high-carbon heat-treated curved-slot rotor |
| Bracket | Vehicle-specific TTSPORT caliper bracket, matched to the G50 hub |
| Lines | TTSPORT stainless-braided brake line with soft-metal jacket |
Why It Works
Going from a stock two-piston caliper to the TT7609's four-piston layout spreads clamping force across more pad area, which improves pedal modulation and reduces the flex that makes a stock setup feel mushy under hard braking. The caliper body is cast, a process the source calls out for its rigidity - a stiffer caliper resists deforming under line pressure, so more of your pedal effort actually reaches the pads instead of getting absorbed by caliper flex.
The larger 285mm rotor adds thermal mass over the factory disc, giving the system more capacity to absorb heat before fade sets in. The curved-slot face also helps clear brake dust generated at the pad-rotor interface, which cuts down on dust baking onto the wheel face over time.
- Clears the factory 15-inch wheel with the 285/295mm rotor package, no spacers required
- Custom TTSPORT bracket matched to the G50 hub for consistent rotor-to-caliper alignment
- Stainless-braided lines with a soft-metal outer layer for added durability over rubber hose

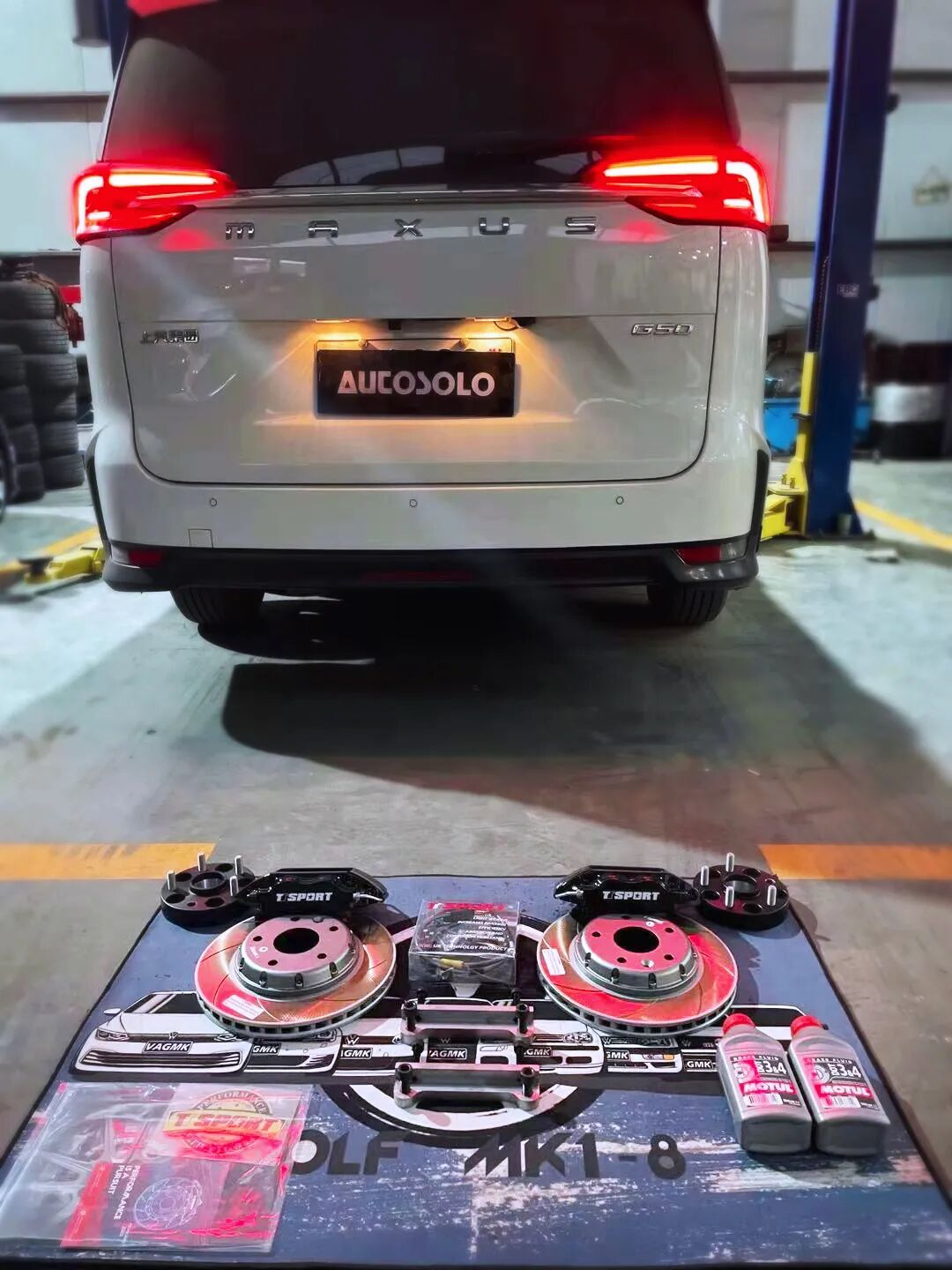

Installation Gallery
Frequently Asked Questions
Will the TTSPORT 7609 kit fit under the Maxus G50's stock 15-inch wheels?
What was wrong with the Maxus G50's factory brakes?
What does the TT285 rotor's curved-slot pattern do?
