Lynk & Co 05 Big Brake Kit Upgrade / TTSPORT Classic 8703S
The Lynk & Co 05 pairs a sharp coupe-SUV shape with Borg Warner's fifth-generation intelligent AWD system — a setup that can shift torque distribution in as little as 100 milliseconds, hit 0-62 mph in roughly 6-7 seconds, and put 90% of its peak 350 Nm torque down within 2 seconds. That's a lot of grip and acceleration for a stock single-piston front caliper to keep in check. This case swaps in TTSPORT's Racing Series TT8703S six-piston big brake kit to give the brakes the same confidence the drivetrain already has.
The stock single-piston caliper on the 05 doesn't leave much margin once the AWD system is putting power down hard and repeatedly. The owner opted for a full front-axle upgrade rather than just a pad or fluid swap.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Lynk & Co 05, factory 20-inch wheels |
| Front caliper | TTSPORT TT8703S monobloc cast six-piston caliper, red finish, stainless racing pistons |
| Front rotor | TTSPORT 380mm x 34mm high-carbon heat-treated curved rotor |
| Bracket | Vehicle-specific caliper mounting bracket |
| Lines | TTSPORT stainless steel braided brake lines |
| Hardware | 25mm wheel flange adapter for clearance behind the factory 20-inch wheels |
The TT8703S is a one-piece cast body with six stainless racing pistons — no dust boots, just the exposed piston bores you'd expect on a caliper built for repeated hard stops rather than daily fade avoidance alone.
Why It Works
- A monobloc cast caliper body flexes less under load than a stock single-piston floating caliper, which translates directly into a firmer, more consistent pedal.
- The 380mm x 34mm rotor adds mass and surface area over the factory disc, giving the system more thermal capacity to absorb heat from repeated hard braking without fading.
- Stainless steel lines replace the factory rubber hoses, cutting down on hose expansion under pressure for a more direct pedal feel.
- Installed with the vehicle-specific bracket and a 25mm flange adapter, the kit clears the factory 20-inch wheels with a clean, full fit.

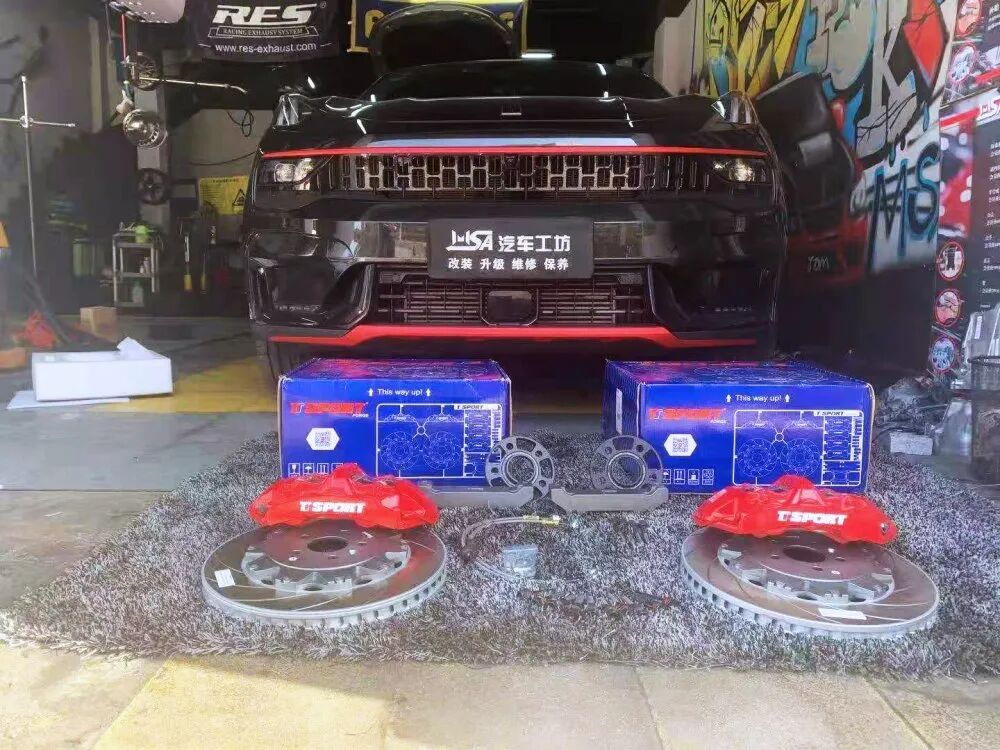

Installation Gallery
FAQ
What vehicle is this TT8703S kit installed on?
What's included in the TTSPORT kit used here?
Do the bigger calipers clear the stock wheels?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
