Jaguar XEL Big Brake Kit Upgrade / TTSPORT Classic 8611
The Jaguar XEL pairs the brand's signature flowing lines with a new 2.0T four-cylinder, offered in 200-hp and 250-hp tunes. A car with that kind of performance ambition deserves brakes that match it, so this owner moved past the factory setup and installed a TTSPORT 8611 forged six-piston big brake kit up front, matched to 330x28mm high-carbon heat-treated rotors and stainless steel lines — all fitting behind the car's stock 17-inch wheels.
The kit was built specifically for this platform, so the caliper, bracket, and rotor package clears the factory 17-inch wheel without any spacer or wheel change. That's the difference between a swap that looks right and one that actually is right — geometry matters as much as the hardware itself.
Vehicle & Kit Specs
Here's the breakdown of what went on the car, all specific to the Jaguar XEL's stock 17-inch wheel fitment.
| Item | Specification |
|---|---|
| Vehicle | Jaguar XEL, 2.0T (200 hp / 250 hp), 17-inch wheels |
| Front caliper | TTSPORT 8611 forged six-piston caliper, high-strength aluminum-alloy body |
| Front rotor | TTSPORT 330mm x 28mm high-carbon, heat-treated curved-vane rotor |
| Brake lines | TTSPORT stainless steel brake lines |
Why It Works
- The forged aluminum caliper body sheds heat more effectively than a cast one, and its thinner, lighter build cuts unsprung weight — the caliper stays more consistent and linear under repeated hard stops.
- Six pistons spread clamping force across more pad area than a factory single- or dual-piston caliper, translating into a firmer, more even bite at the pedal.
- The 330x28mm curved-vane rotor adds rotational mass and surface area over the stock disc, which means more heat capacity and better resistance to fade when the brakes are worked repeatedly.
- Stainless steel lines don't expand under pressure the way rubber hoses do over time, which keeps pedal travel short and consistent stop after stop.
- The whole package was engineered to clear the XEL's factory 17-inch wheel, so this owner didn't need a wheel change to make the upgrade work.
Every kit ships as a complete package — forged calipers, rotors, brackets, pads, and stainless lines — so there's no scrambling for extra parts mid-install. That two-piece forged construction is what allows the caliper to stay stiff under braking load instead of flexing, which is a big part of why the pedal feels more direct after the swap.

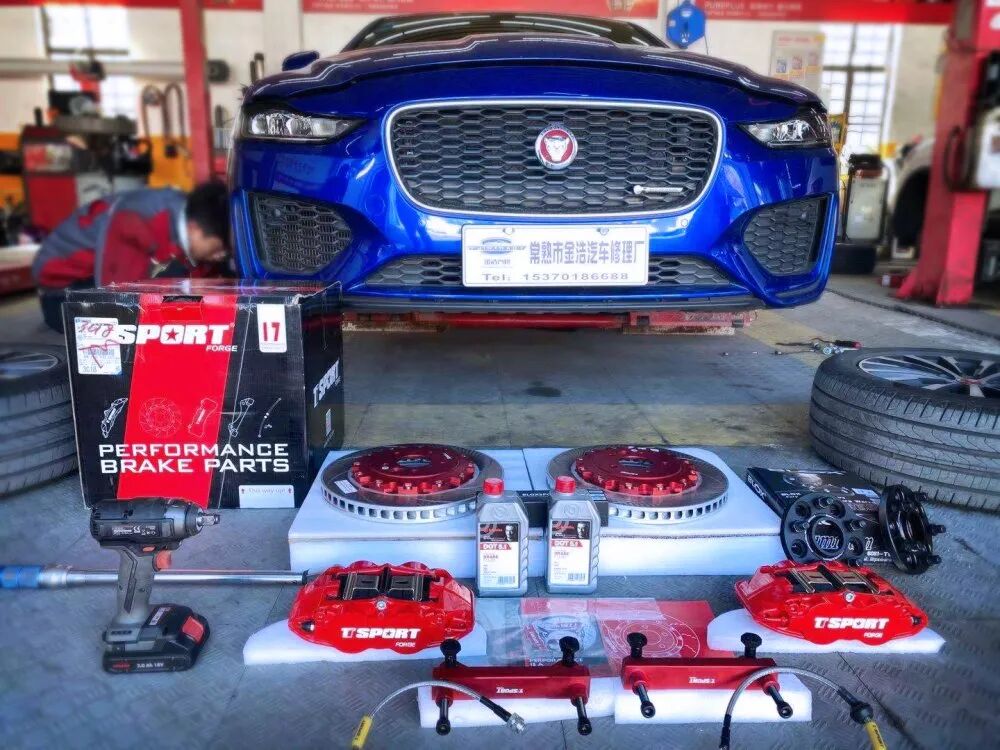

Installation Gallery
What wheel size does the TTSPORT 8611 kit fit on the Jaguar XEL?
What's included in the TTSPORT 8611 kit used on this Jaguar XEL?
Why does a forged aluminum caliper help braking performance?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
