Honda Civic (10th Gen) Big Brake Kit Upgrade / TTSPORT Classic 9040

The 10th-generation Honda Civic built its reputation on sharp styling, a punchy turbo four, and handling that punches above its class. But a hot hatch is only as good as its brakes, and the stock single-piston setup on this car wasn't built to match the pace its owner wanted. The fix: a TTSPORT TT9040 forged six-piston big brake kit, installed without touching the factory 18-inch wheels.

China's market-leading Civic trims run a 1.5T L15B four-cylinder good for 177 hp and 220 N·m (CVT models), with VTEC TURBO technology hitting a claimed 38% thermal efficiency — a record for a mass-production turbo gas engine at the time. That kind of power under a compact chassis puts real demand on the factory braking system, especially on repeated hard stops.

Vehicle & Kit Specs

The owner kept the stock 18-inch wheels and swapped only the front brake hardware for a TTSPORT TT9040 package. Here's what went on the car:

Why It Works

• Forged construction is about 30% stiffer than cast, and holds its shape under high heat and repeated hard stops instead of flexing — that rigidity is what gives the pedal a firmer, more predictable feel.
• Staggered 38/32/27mm pistons apply pressure progressively across the pad, keeping the bite linear rather than grabby — and at 50.2 cm² of total piston area, clamping force is well beyond the factory single-piston caliper.
• The 355x32mm curved-slot rotor adds mass and surface area over the stock disc, which means more heat capacity for consistent stops, plus the slots help clear dust and moisture off the pad face for quieter operation.
• The whole kit tucks behind the factory 18-inch wheel with no spacers required, so the swap doesn't change wheel offset or ride characteristics.

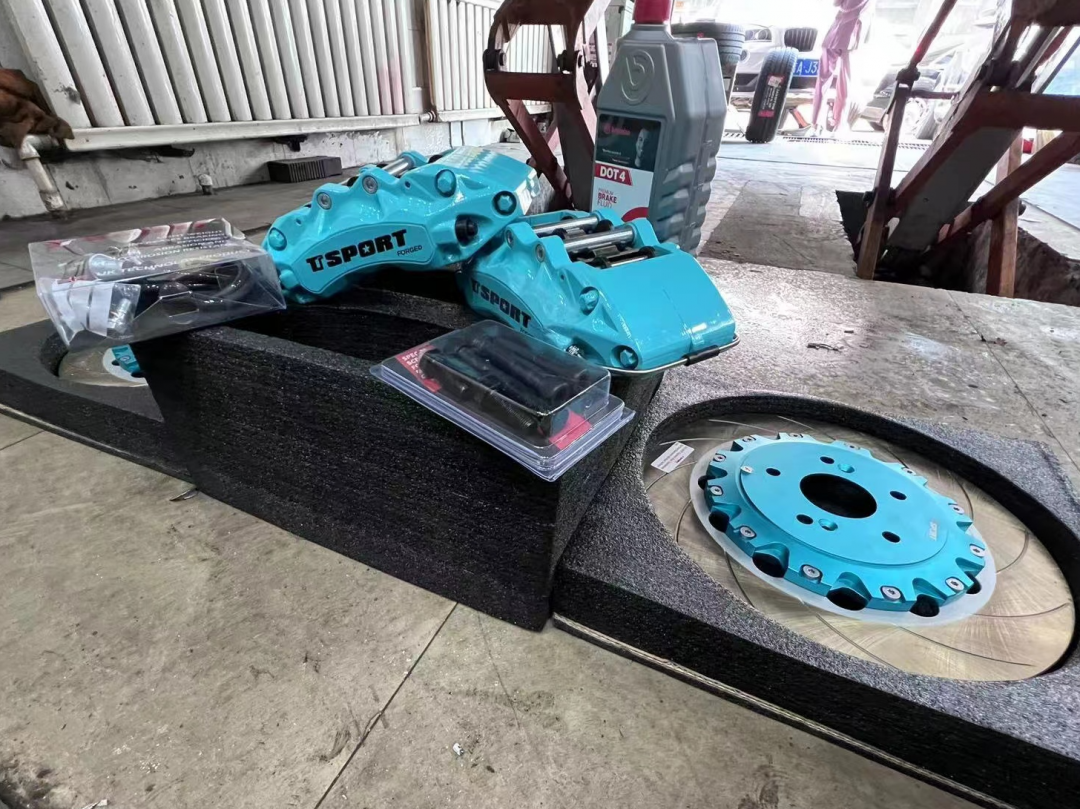

Installation Gallery
