Ford Focus Big Brake Kit Upgrade / TTSPORT Classic 5440
The Ford Focus built its reputation on sharp handling and a rally-bred chassis, but the factory single-piston front caliper doesn't do that chassis justice once you start pushing the car. This case study covers a Focus riding on 17-inch wheels that traded its stock brake hardware for a TTSPORT Classic 5440 forged four-piston kit paired with 343mm rotors.

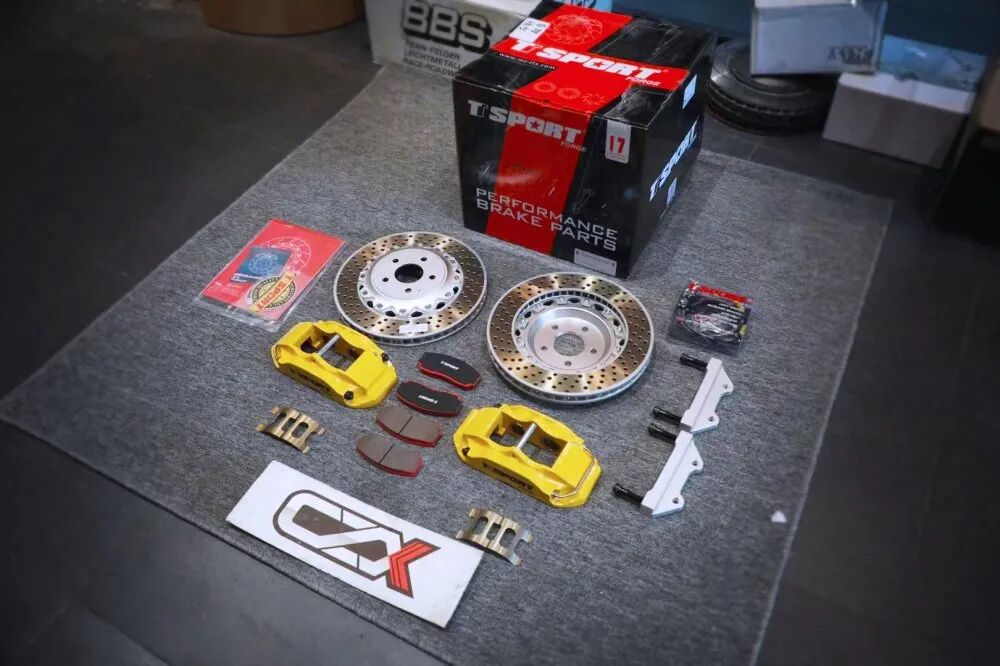

The build list was straightforward: a TT5440 forged four-piston caliper, a TT 343x28mm high-carbon heat-treated curved-vane rotor, and TTSPORT stainless steel brake lines — all fitted behind the car's stock 17-inch wheels with no spacers needed.
Vehicle & Kit Specs
Here's the hardware breakdown for this Focus build:
| Item | Specification |
|---|---|
| Vehicle | Ford Focus, 17-inch factory wheels |
| Front caliper | TTSPORT Classic 5440 forged four-piston caliper |
| Front rotor | TTSPORT 343x28mm high-carbon heat-treated curved-vane rotor |
| Bracket | Vehicle-specific caliper mounting bracket |
| Lines | TTSPORT stainless steel brake lines |
| Hardware | Torque-spec mounting bolts, high-temp grease for the hub |
Below is the official TTSPORT spec sheet for the 5440 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
Swap the numbers side by side and the reason the pedal feels different becomes obvious. A single-piston floating caliper clamps from one side and relies on the caliper body sliding to apply even pressure — that path flexes under hard braking, which is where a soft, long pedal comes from. The 5440's two-piece forged body is a fixed, four-piston design, so both pad faces get clamped directly with less flex in the load path.
Going from the factory rotor to the 343x28mm TTSPORT rotor also adds mass and swept area, which means more heat capacity before the brakes start to fade on a hard stop. The curved-vane, high-carbon rotor design is built to help that heat move out of the disc rather than sit and soak into the pads.
- Forged four-piston caliper replaces the factory single-piston unit for a firmer, more consistent pedal
- 343x28mm rotor is larger than the stock disc, adding heat capacity and friction area
- Fits behind the car's factory 17-inch wheels with a vehicle-specific bracket, no spacers
- Stainless steel lines replace the factory rubber lines for a more direct, less spongy pedal response
Installation Gallery
What wheel size does the TTSPORT 5440 kit require on the Focus?
What's included in this Focus big brake kit?
Does the TT5440 kit replace the Focus's stock caliper?
