Buick GL8 Big Brake Kit Upgrade / TTSPORT Classic 5440
Ask any car buyer in China what "MPV" means and the Buick GL8 is usually the first answer that comes to mind. It's not the cheapest option in the segment, but it's the benchmark — comfortable, well-equipped, and increasingly tailored specifically for the Chinese market since the GL8 Avenir trim arrived. What it isn't known for is aggressive braking hardware, which is exactly why this owner reached out for a stopping-power upgrade.
Big brake upgrades on Japanese MPVs are common, but GL8 cases are rarer simply because of how the vehicle gets used. For this build, we specced the TTSPORT 5440 forged four-piston caliper — chosen for its balanced piston area and progressive piston layout, which the GL8's factory master cylinder can push without any modification. The result is a firmer pedal and stronger braking without changing how the brake system is actuated.
Vehicle & Kit Specs

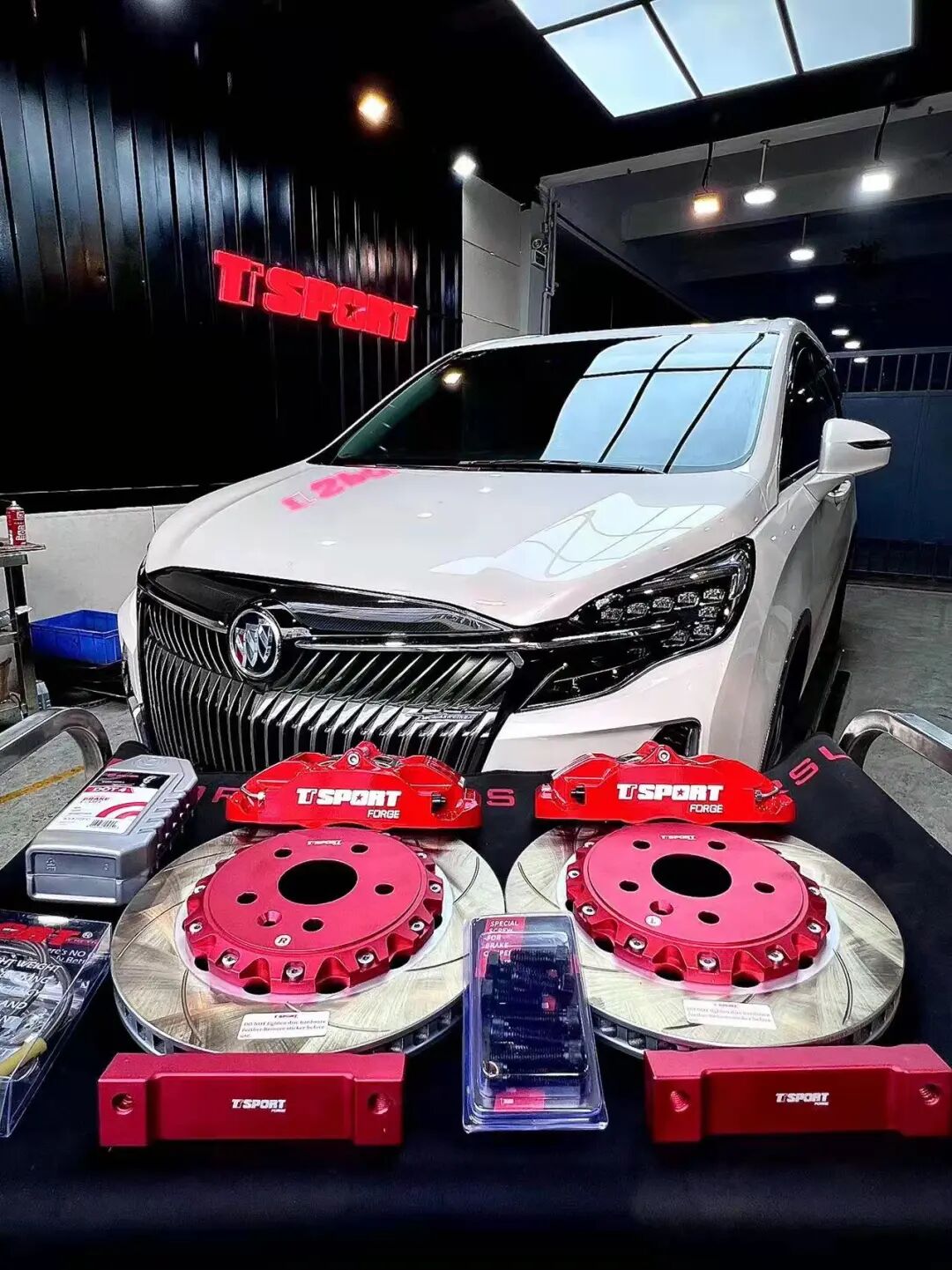

Here's the full parts list for this Buick GL8 install, running on its stock 17-inch wheels.
| Item | Specification |
|---|---|
| Vehicle | Buick GL8, 17-inch factory wheels |
| Front caliper | TTSPORT TT5440 forged four-piston caliper |
| Front rotor | 330mm x 28mm high-carbon, heat-treated ventilated rotor |
| Lines | TTSPORT stainless steel brake lines |
The table below is the official TTSPORT spec sheet for the 5440 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- Two-piece forged aluminum construction gives the TT5440 body more rigidity than a stock cast caliper, so less pedal travel gets absorbed by flex under hard braking.
- The 38mm/41mm four-piston layout distributes clamping force progressively across the pad, translating to a more linear, predictable pedal feel rather than an on/off bite.
- The 330mm ventilated, high-carbon heat-treated rotor carries more thermal mass than the factory disc, which helps hold off the fade that shows up after repeated stops.
- At 2.65 kg per caliper, the whole assembly is sized to clear the GL8's 17-inch factory wheels without spacers or wheel changes.
Installation Gallery
What's included in the TTSPORT 5440 big brake kit installed on this Buick GL8?
How much piston area does the TT5440 caliper have, and why does that matter for a GL8?
Does the rotor size help with heat fade on a heavier vehicle like the GL8?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
